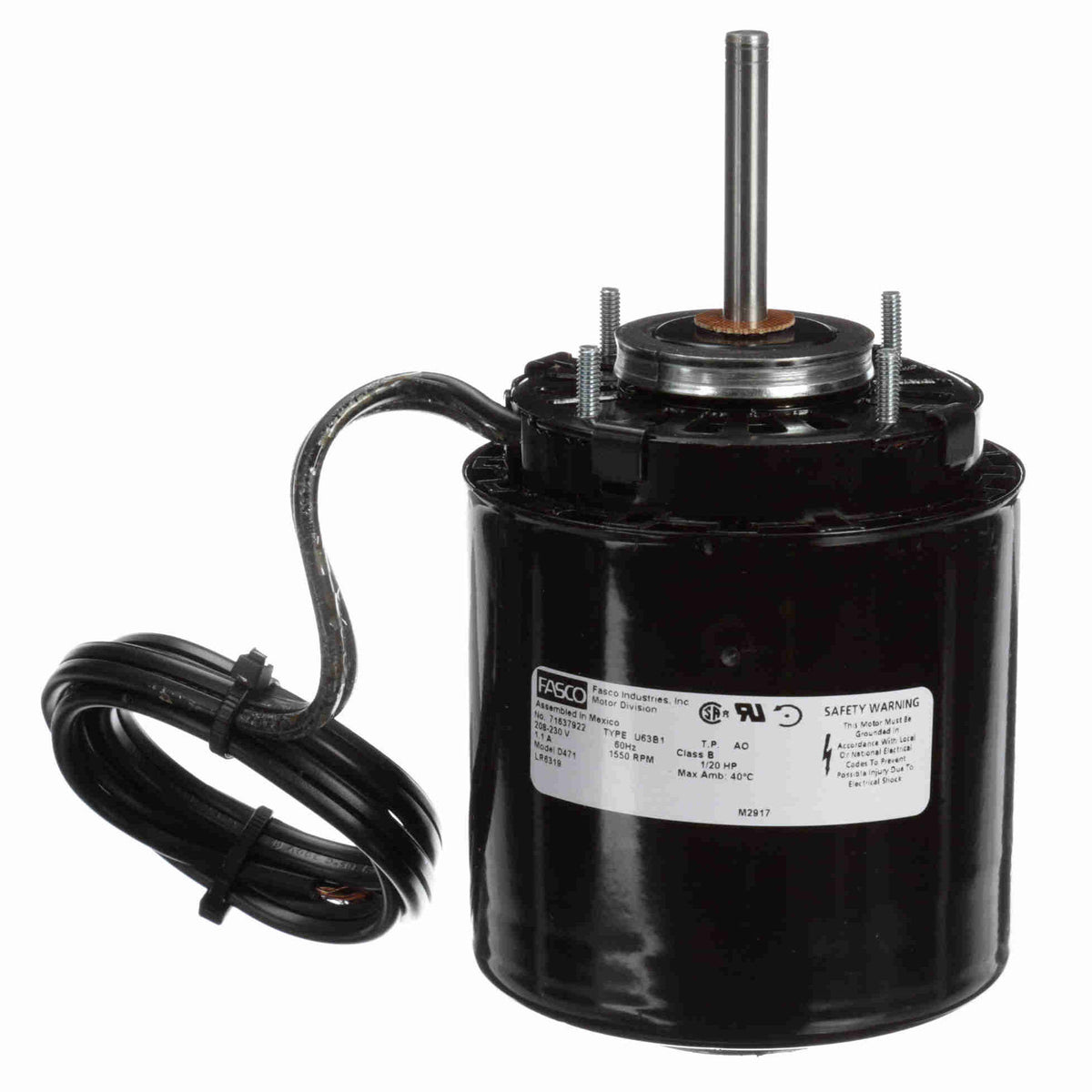

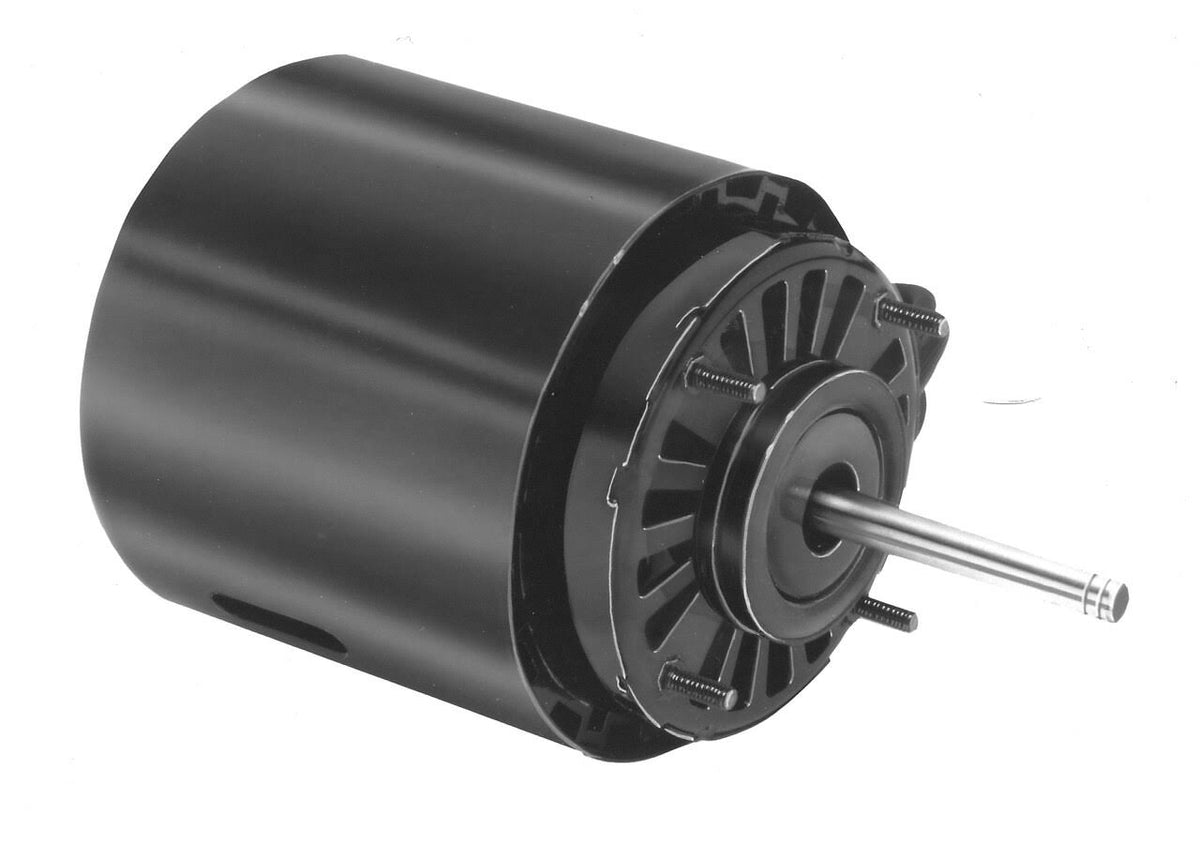

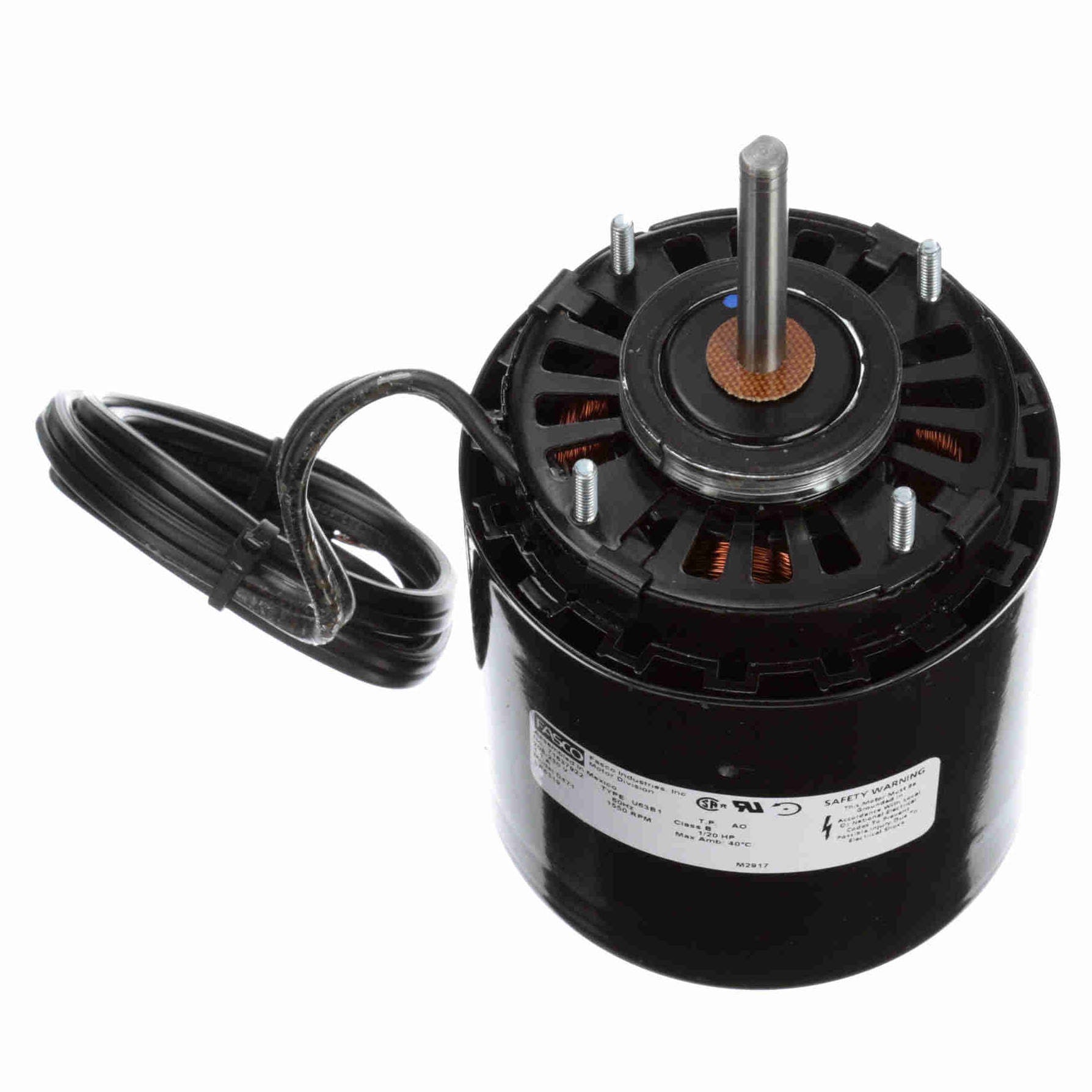

HVAC Motor, 1/20 Hp, 1550 rpm M96847
Sale price
$27.95
Regular price $91.35
Skip to product information
SKU - D471 UPC - 818508020099 Refrigeration Fan Motor 3.3" Diameter Shaded Pole Thermally Protected Open Shaft End and Lead End End-Frame, Enclosed Shell, Fan Cooled, Air Over Class B Insulation, 40°C Ambient Sleeve Bearing 5/16" Diameter Shaft with Flat?" Leads Extended Studs Shaft Length 8.00 Width 4.50 Height 4.50 Dimension Unit of Measure IN Weight 5.00 Country of Origin Mexico Units in Package 1 Power Rating (In HP) 0.05 Power Rating (In KW) 0.04 Speed (Max) 1550 Voltage 208-230 Frame Size 3.3 Enclosure Type Open Air Over Rotation Counterclockwise Shaft End Mounting Type Extended Studs Max Ambient 40°C Shaft Diameter ( In in.) 0.313 C Dim 7.18 Connection Drawing No NA DE Bearing Type Sleeve Duty Air Over Electrical Type Shaded Pole Frame Length 2.82 Frame Material Steel Frame Type 3.3 Frequency 60 HP2 1/20 Number of Poles 4 Number of speeds 1 ODE Bearing Type Sleeve Outline Drawing No 7163792222_S001 Service Factor 1 Shaft Extension 2.5 Shaft Type Flat & Groove Speed2 1550 Starting Type Across The LineThermally Protected UDF_MANUFACTURER Fasco
HVAC Motor, 1/20 Hp, 1550 rpm M96847
Sale price
$27.95
Regular price $91.35
Shipping calculated at checkout.
